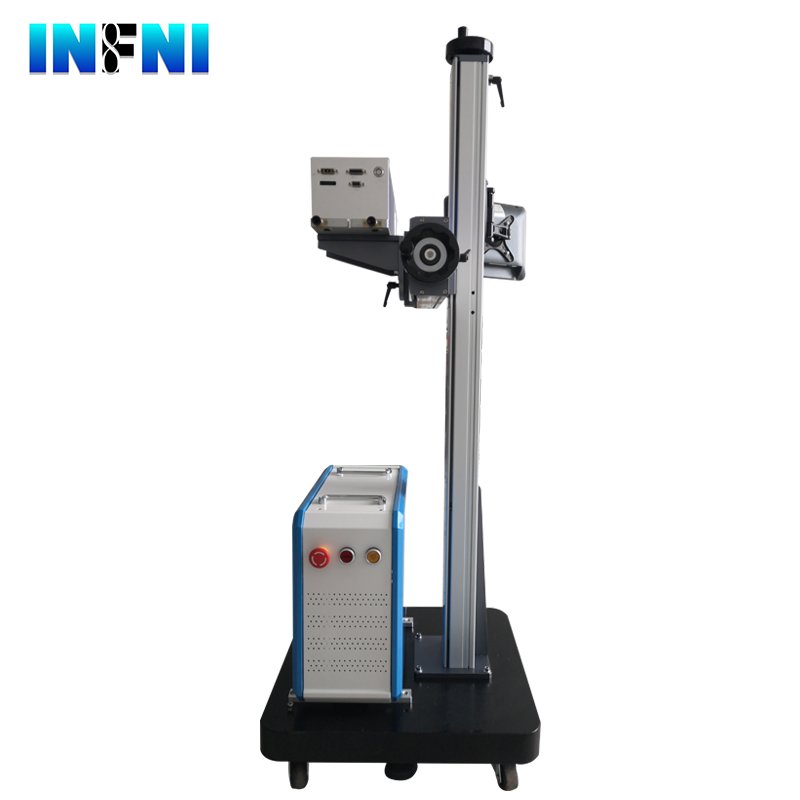

LS-UVDBF-3/5/12
Infni laser
Product Advantages:
1.Good visual effect, don't worry about tampering, anti-counterfeiting effect is obvious
2.High - speed non - stop laser code spurting, 24 - hour continuous stable operation,high processing efficiency
3.It does not produce substances harmful to human body and the environment, and produces nicks on the surface of the object to be printed. It is an environment-friendly high-tech product
4.Low environmental impact, plug in can be used, low operating cost, no need for personal care
5.One-time investment, high initial cost compared with spurting code, but maintenance - free, and no consumables
6.Save 20,000-40,000 of consumable cost per year
Application industry:
Extrusion industry photovoltaic wire, nuclear cable, control cable, food and medicine packaging industry, beverage and wine industry
Datas:
Model | U-9103 | U-9105 | U-9110 | U-9115 | ||
Power | 3W | 5W | 10W | 15W | ||
Parameters | Focus lens | F=160mm | F=210mm | F=254mm | F=300mm | |
Marking area(mm) | 100×100 | 160×160 | 175×175 | 220×220 | ||
Font type | Built-in multiple standard fonts, special fonts can be generated and re-edited | |||||
Marking content | Text information, variable information, serial number, batch number, QR code, logo and graphic image | |||||
Marking speed | ≤12000mm/s，Depending on materials | |||||
Minimum line | 0.1mm（Depending on materials） | |||||
Laser | Laser type | UV laser | ||||
Wave length | 355nm | |||||
Power stability | ±5%rms（average power） | |||||
Other | Operating environment | temperature 0-40℃（32-105°F），humidity 10%-90%，no condensation | ||||
Electric demand | 2.5KW/AC220V/50Hz | |||||
Weight | laser head：20KG | laser head：20KG | laser head：55KG | laser head：55KG | ||
control box：21KG | control box：21KG | control box：22KG | control box：25KG | |||
Communication interface | Ethernet, TCP/IP, RS232, encoder | |||||
Samples
Q: How to Install the machine
A: After receive our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser marking machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.
Q: What's package?
A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: What's delivery time?
A: Generally speaking, lead time is 5-7 working days after receive the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.
